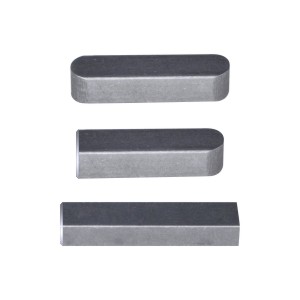

Flat Key
| classfication : | Common Type | Type : | Type B/Type C/Type A |
| Finished/Semi-Finished Products : | Finished Product | Shape Picture Name : | Flat Key |
| Categories : | Flat Key | Material : | SUS304/S45C |

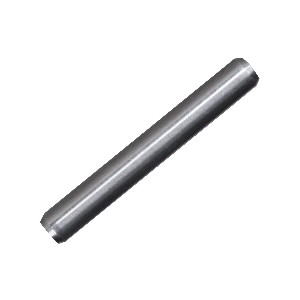

Straight Type Positive Tolerance Locating Pin Standard Type/One End R-Shaped And One End Cone Angle Type/Economical Type/Chamfered C Type/High Precision Type
| End Shape : | End R-Shape/Chamfer C-Shape | Product Name : | Straight Rod Locating Pin |
| Categories : | Pin class | End Feature : | End Without Machining |
| Shape Picture Name : | Pin class | Material : | SUJ2/SUS304/SUS440C |
| Tolerance : | +0.010/+0.005 |

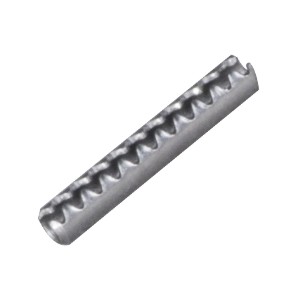

Elastic Pin With Toothed Groove
| Product Name : | Elastic Cylindrical Pin | End Feature : | Groove Type With Teeth |
| Shape Picture Name : | Pin class | Categories : | Pin class |
| Material : | Stainless Steel |

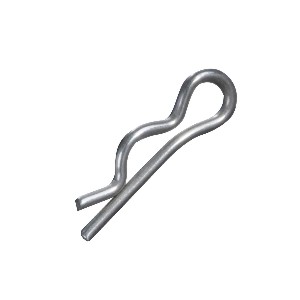

Lockpin
| Product Name : | Lockpin | Categories : | Pin class |
| Shape Picture Name : | Pin class | Material : | Spring Steel |

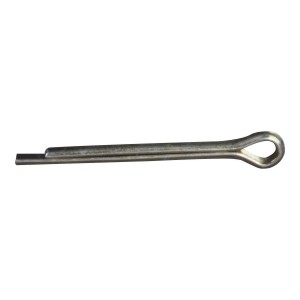

Cotter Pin
| Product Name : | Cotter Pin | Shape Picture Name : | Pin class |
| Categories : | Pin class | Material : | SUS304 |

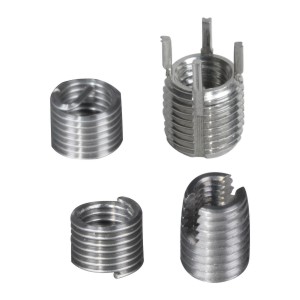

Threaded Sleeve
| classfication : | Self-Tapping Slotting Type/Without Tongue Type/Bolt Type/Standard type | Wall Thickness : | Thick Wall Type/Thin Wall Type |
| Coarse/Fine : | Fin Thread/Coarse Thread | Categories : | Threaded Sleeve |
| Shape Picture Name : | Threaded Sleeve | Material : | Carbon Steel/SUS304/SUS303 |

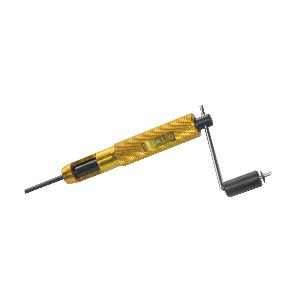

Threading Tool Installation Wrench
| Type : | Standard type | Product Name : | Wire Thread Insert Mounting Wrench |
| Shape Picture Name : | Threaded sleeve mounting tool | Categories : | Screw sleeve installation tool |

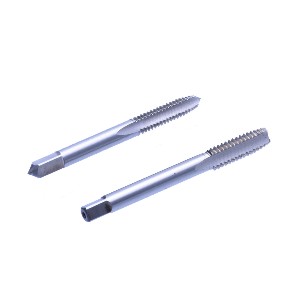

Threading Tool Metric Thread Sleeve Tap
| Type : | Standard type | Product Name : | Metric Screw Tap |
| Categories : | Screw sleeve installation tool | Shape Picture Name : | Threaded sleeve mounting tool |

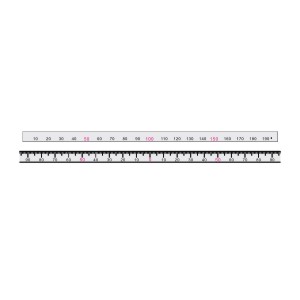

Scale Graduated transverse type L Size selection type
| Zero Position : | Zero Point/Zero Center/Zero Right End | Size Selection : | L Size Selection Type |
| Scale Direction : | Transverse Type | Product Name : | Scale |
| Surface Treatment : | None | Categories : | Scale |
| Shape Picture Name : | Scale | Material : | Aluminium Alloy/0Cr18Ni9 |

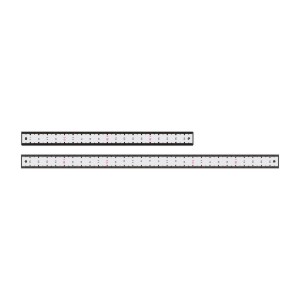

Scale Graduated longitudinal type L Size selection type
| Size Selection : | L Size Selection Type | Zero Position : | Zero Lower End/Zero Center |
| Scale Direction : | Longitudinal Type | Product Name : | Scale |
| Surface Treatment : | None | Categories : | Scale |
| Shape Picture Name : | Scale | Material : | 0Cr18Ni9/Aluminium Alloy |

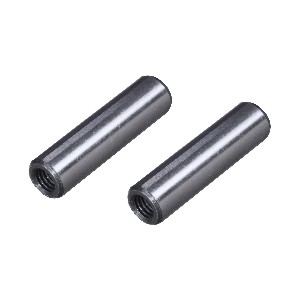

Tolerance Locating Pin
| End Shape : | Chamfer C-Shape | Product Name : | Straight Rod Locating Pin |
| End Feature : | One End Tapped Hollow Type/One End Tapped With Vent Groove Type | Shape Picture Name : | Pin class |
| Categories : | Pin class | Material : | SUJ2/SUS304 |
| Tolerance : | p6/+0.010/+0.005/m6 |

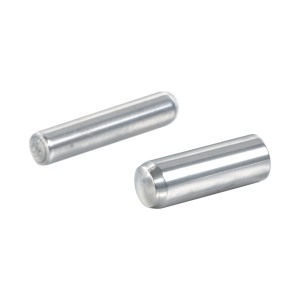

Straight Type Negative Tolerance Locating Pin Standard Type/One End R Type And One End Cone Angle Type H7/g6
| End Shape : | End R-Shape | Product Name : | Straight Rod Locating Pin |
| Categories : | Pin class | End Feature : | End Without Machining |
| Shape Picture Name : | Pin class | Material : | SUS304/SUJ2/SUS440C |
| Tolerance : | g6/H7 |

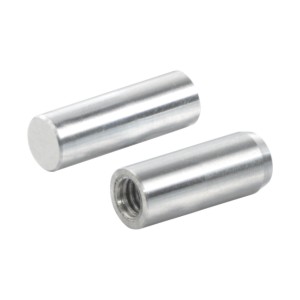

Straight Type Negative Tolerance Locating Pin Chamfer C Type/One End Tapped Type H7/g6
| End Shape : | Chamfer C-Shape | Product Name : | Straight Rod Locating Pin |
| Shape Picture Name : | Pin class | Categories : | Pin class |
| End Feature : | End Without Machining/One End Tapped With Vent Groove Type/One-End Tapped Without Vent Groove Type | Material : | SUJ2/SUS304/SUS440C |
| Tolerance : | H7 |

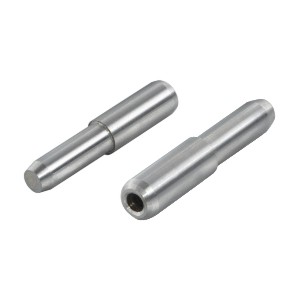

Stepped Locating Pin Standard Type One-End Tapped Type
| Categories : | Pin class | Shape Picture Name : | Pin class |
| End Feature : | End Without Machining | Material : | SUJ2 |
| Tolerance : | +0.010/+0.005 |

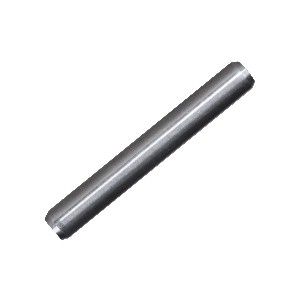

Straight Taper Type Positive/Negative Tolerance Locating Pin Taper Angle Type M6/g6
| End Shape : | Conical Shape | Product Name : | Straight Taper Locating Pin |
| End Feature : | End Without Machining | Shape Picture Name : | Pin class |
| Categories : | Pin class | Material : | SUS440C |
| Tolerance : | m6/g6 |

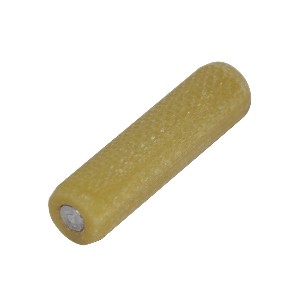

Insulation Locating Pin
| End Shape : | Chamfer C-Shape | Product Name : | Insulation Locating Pin |
| End Feature : | End Without Machining | Shape Picture Name : | Pin class |
| Categories : | Pin class | Material : | Epoxy Fiber Coated SUS304 Core |
| Tolerance : | 0/+0.03 |
