Flange Shaft Support Standard Mounting Hole Through Hole
| Material : | S45C/A6061/SUS304 | Guide Shaft Fixing Mode : | Screw Fixed |
| Support Fixing Hole Shape : | Through Hole Shape | Shape Picture Name : | Flange Type Square Flange Type/Flange Type Opposite Flange Type/Flange Type Round Flange Type |
| Type : | Standard Type | Manufacture Craft : | Machining Type |
| Surface Treatment : | Electroless Nickel Plating/Blacked/Clear Anodizing (matte)/None/Black Anodic Oxidation |

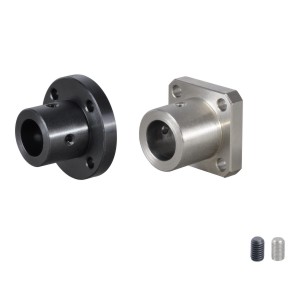

Flange Shaft Support Standard Mounting Hole Screw Hole
| Material : | S45C | Appearance : | Round Flange Type/Square Flange Type |
| Support Fixing Hole Shape : | Screw Hole Type | Guide Shaft Fixing Mode : | Screw Fixed |
| Shape Picture Name : | Flange Type Round Flange Type/Flange Type Square Flange Type | Type : | Standard type |
| Manufacture Craft : | Machining Typeq | Surface Treatment : | Blacked/Electroless Nickel Plating |

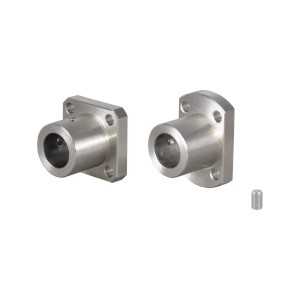

Flange Shaft Support Lengthened Mounting Hole Through Hole
| Material : | S45C | Support Fixing Hole Shape : | Through Hole Shape |
| Guide Shaft Fixing Mode : | Screw Fixed | Shape Picture Name : | Flange Type Opposite Flange Type/Flange Type Round Flange Type/Flange Type Square Flange Type |
| Type : | Lengthened Type | Manufacture Craft : | Machining Type |
| Surface Treatment : | Electroless Nickel Plating/Blacked |

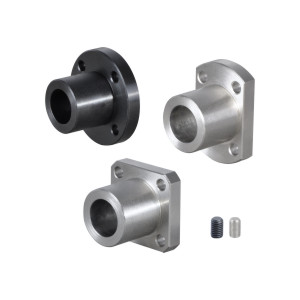

Flange Shaft Support
| Material : | S45C | Appearance : | Round Flange Type/Opposite Flange Type/Square Flange Type |
| Guide Shaft Fixing Mode : | Screw Fixed | Support Fixing Hole Shape : | Through Hole Shape |
| Shape Picture Name : | Flange,Round Flange,End Face Fixed Type/Flange,Opposite Flange Type,End Face Fixed Type/Flange,Square Flange Type,End Face Fixed Type | Type : | End Face Fixed Type |
| Manufacture Craft : | Machining Type | Surface Treatment : | Electroless Nickel Plating/Blacked |

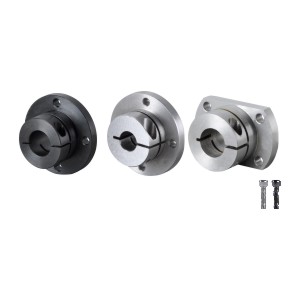

Open Flange Shaft Support Standard Mounting Hole Through Hole
| Material : | S45C/SUS304 | Appearance : | Square Flange Type/Round Flange Type/Opposite Flange Type |
| Guide Shaft Fixing Mode : | Open Clamping And Fixing | Support Fixing Hole Shape : | Through Hole Shape |
| Shape Picture Name : | Flange,Square Flange,Open Type/Flange,Round Flange,Open Type/Flange,Opposite Flange Type,Open Type | Type : | Standard type |
| Manufacture Craft : | Machining Type | Surface Treatment : | Electroless Nickel Plating/Blacked/None |

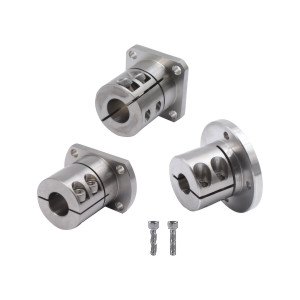

Open Flange Shaft Support Lengthened Mounting Hole Through Hole
| Material : | S45C/SUS304 | Appearance : | Opposite Flange Type/Round Flange Type/Square Flange Type |
| Guide Shaft Fixing Mode : | Open Clamping And Fixing | Support Fixing Hole Shape : | Through Hole Shape |
| Shape Picture Name : | Flange,Opposite Flange Type,Open Type/Flange,Round Flange,Open Type/Flange,Square Flange,Open Type | Type : | Lengthened Type |
| Manufacture Craft : | Machining Type | Surface Treatment : | Electroless Nickel Plating/Blacked/None |

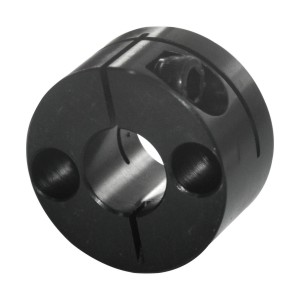

Open Round Shaft Support Compact Standard Type/Long Guide Type
| Appearance : | Round | Material : | S45C |
| Guide Shaft Fixing Mode : | Open Clamping And Fixing | Support Fixing Hole Shape : | Countersunk Hole Type |
| Shape Picture Name : | Round Open Type | Type : | Standard type |
| Manufacture Craft : | Machining Type | Surface Treatment : | Blacked/Electroless Nickel Plating |

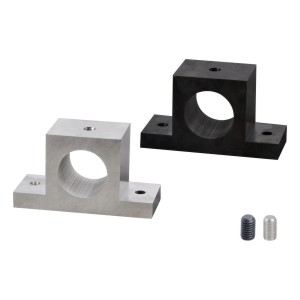

T-Shaped Shaft Support Standard Without Positioning Hole/With Positioning Hole
| Material : | S45C/SUS304/A6061 | Selection Of Installation Size : | H Size Designation/H Size Selection |
| Appearance : | T Shape | Support Fixing Hole Shape : | Through Hole Shape |
| Guide Shaft Fixing Mode : | Screw Fixed | Shape Picture Name : | T-Shape Screw Fixation |
| Type : | Standard type | Manufacture Craft : | Machining Type |
| Surface Treatment : | Blacked/None/Electroless Nickel Plating/Clear Anodizing (matte) |

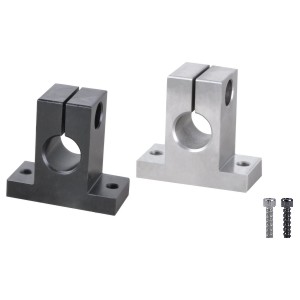

Shaft Support
| Appearance : | T Shape | Selection Of Installation Size : | H Size Selection |
| Material : | S45C | Support Fixing Hole Shape : | Through Hole Shape |
| Guide Shaft Fixing Mode : | Open Clamping And Fixing | Shape Picture Name : | T-Shaped Opening Type |
| Type : | Standard type | Manufacture Craft : | Machining Type |
| Surface Treatment : | Blacked/Electroless Nickel Plating |

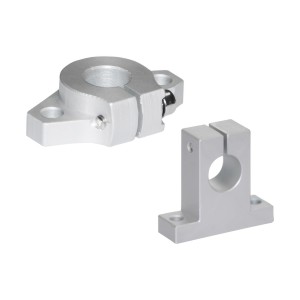

Flange Shaft Support Casting Flange Type /T Type
| Material : | Aluminium Alloy | Appearance : | T Shape/Flange Shape |
| Guide Shaft Fixing Mode : | Screw Fixed/Open Clamping And Fixing | Support Fixing Hole Shape : | Through Hole Shape |
| Shape Picture Name : | T-Shape Screw Fixation/Flange Type Open Type | Manufacture Craft : | Casting Type |
| Surface Treatment : | Clear Anodizing (matte) |
